Prepare Go diagram text using Kombilo

Kombilo is a Go database management and pattern search program. It can generate Sensei's Library text output. The description here is based on version 0.7.4 of Kombilo.

IMAGE(/go/sites/default/files/field/image/kombilo-SL.png)

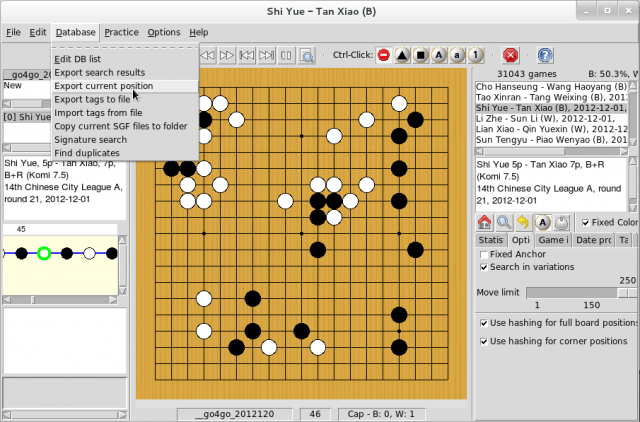

As shown in the screen capture above, when a game is open, select Database menu then Export current position. In the small popup dialog, select the number of moves to be shown (up to 9) and choose the wiki format. When the OK button is clicked, the result is shown in a text area and can be copied and then pasted here:

$$B $$ --------------------------------------- $$ | . . . . . . . . . . . . . . . . . . . | $$ | . . X O O . . . . . . . . . . O . . . | $$ | . . X X . O . . . . . . . O . . X . . | $$ | . X . O . . . . . , . O . . . X . . . | $$ | . X O . . . . . . . . . . . . . . . . | $$ | . X X O . . . . . . . . . . . X . . . | $$ | . . O . O . . . . . O O . O . . . . . | $$ | . . O O . . . . O . X X O . . X . . . | $$ | . . . . . . . . . . X O . . . . . . . | $$ | . . . , . . . . . , . . . . . , . . . | $$ | . . . . . . . . . . X . . . . . X . . | $$ | . . . . . . . . . . . . . . . . . . . | $$ | . . . . . . . . . . . . . . . . . . . | $$ | . . . O . . X . . . . . . . . . . . . | $$ | . . . . . . . . . . . . . . . X . . . | $$ | . . . O . . X . . X 3 . . . . , . . . | $$ | . . . . . X . O . 1 O 5 7 . . X . . . | $$ | . . . . . . . . . 2 6 4 . . . . . . . | $$ | . . . . . . . . . . . . . . . . . . . | $$ ---------------------------------------

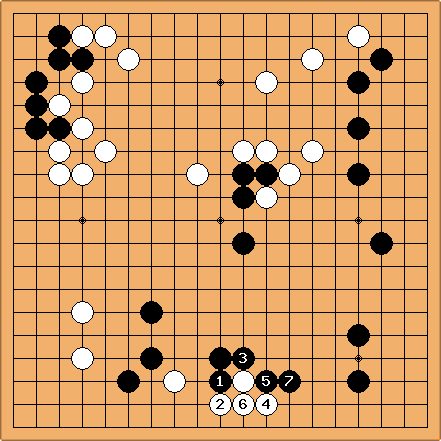

This generates the following diagram:
